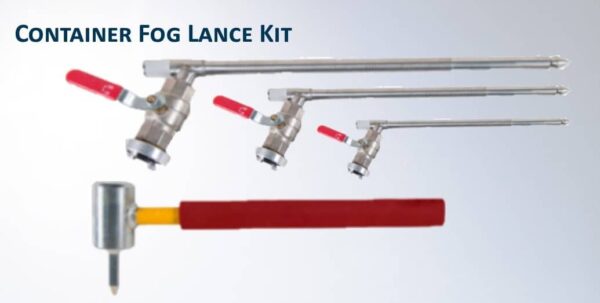

Container Fog Lance Kit


Kit consisting of 3 pcs Water Mist Lance & 1 pcs Impact Spike Hammer

Standard: MSC.365(93), as amended. Application: Ships constructed on or after 1 January 2016 designed to carry containers on or above the weather deck shall carry at least one water mist lance.

The MariSafe container fog lance kit Using the hardness of the tip and blade of Impact Spike Hammer with Rockwell HRC48~56, it is easy to pierce through 2-mm-thick container wall.

The Hammer tip has gone though thoroughly factory testing and can pierce through the 2-mm-thick Q235 hot rolled steel sheet, with no obvious damage to tip or blade of hammer.

Impact hammer:
Nickel plated surface
Surface sticker fluorescent yellow anti-cursor

Spray lance:
Operating: DN25 ball valve.
Main body: Made of copper alloy
Material: nozzle mist – SS316

Technical parameter:
Nominal Pressure: 0.6 Mpa
Jetting Flow: ≥50±8% L/min
Jetting Range:≥6.0±8%m
Size (Total length): hammer—478±5mm
Water Mist Lance—520±5mm
